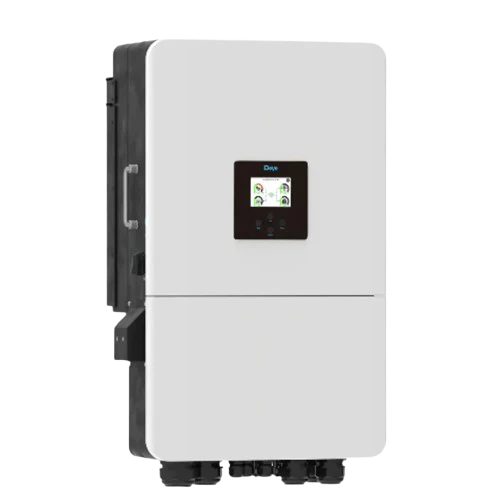

Deye 15kW Hybrid Inverter (Three Phase) – SUN-15K-SG05LP3-EU-SM2

Deye 15kW Hybrid Inverter (Three Phase) – SUN-15K-SG05LP3-EU-SM2

R 28,011.00
R 28,011.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Technical specifications :

  • 230V/400V three-phase pure sine wave inverter
  • Max PV input power : 24000W
  • MPPT voltage range : 160 – 650Vdc
  • Max PV input current (Imp) : 36A + 36A
  • Max PV input Short-Circuit current (Isc) : 54A + 54A
  • No. of MPPT : 2
  • No. of strings per MPPT : 2
  • Rated AC input : 15000W
  • Max AC input : 16500W
  • Rated AC input/output current (A) : 22.8/21.8A
  • Max  AC input/output current (A) : 25/24A
  • Power factor : 0.8
  • Max Efficiency : 97.6%
  • Battery Type : Lead-acid OR Lithium-ion

IP rating :

  • IP65

Certification :

  • Grid Regulation : IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE  217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety / EMC Standard : IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Protection :

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,
Insulation Impedance Detection, Residual Current Detection.

Features :
  • Dual MPPT inputs
  • Dual battery inputs
  • Support storing energy from diesel generator (dedicated connectors)
  • Communication Interface : RS485/RS232/CAN
  • Monitor Mode : GPRS/WIFI/Bluetooth/4G/LAN (wifi dongle included)
  • Max. charging/discharging current of 350A
  • 6 time periods for battery charging/discharging
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel installation

Dimensions :

  • 456×750×268.5 (Excluding Connectors and Brackets)
  • 51.9kg

What’s in the box :

  • 1 x 2 meter LAN-cable for parallel communication
  • 1 x 3 meter battery temperature sensor  + 10 screws
  • 3 x 100A/5-mA split core sensor clamps (4m cable)
  • Wifi dongle
  • 11 x magnetic rings for wires.
  • Wall-mounting bracket
  • 4 x mounting bolts
  • MC4 disconnect tool
  • 4 x sets MC4-connectors
  • User Manual
View full details
