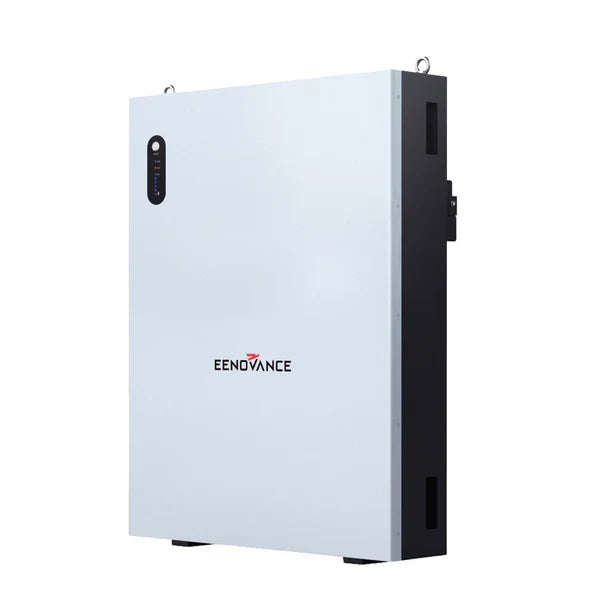

Eenovance Battery LFP Wall Mount 15.97kWh 51.2V

Eenovance Battery LFP Wall Mount 15.97kWh 51.2V
The Eenovance Mana 16.0 is a high-capacity lithium battery system designed for residential and commercial energy storage applications. It supports scalable configurations and is compatible with a wide range of hybrid inverters, making it suitable for off-grid and grid-tied systems. The battery utilizes lithium iron phosphate (LiFePO₄) chemistry, ensuring safety, longevity, and efficiency.

Product Features:
High Capacity: 15.974 kWh usable energy per unit
Long Life: >6,000 cycles at 80% DOD
Safety Focused: LiFePO₄ cells for thermal and chemical stability
Scalability: 15 modules in parallel
High Efficiency: 98% round-trip efficiency
Wide Compatibility: Works with major inverter brands
Smart BMS: Integrated Battery Management System with real-time monitoring
Compact & Elegant: Slim rack-mountable form factor with a clean finish
Specifications:
Performance
Cell technology: LFP (LiFePO₄)
Battery usable energy [1]: 15.974 kWh
Nominal voltage: 51.2 V
Operating voltage: 44.8 ~ 56.6 V
Max charge and discharge current [2]: 300 A
Communication
Display: SOC status indicator, LED indicator
Communication: CAN / RS485 / RS232 / Wi-Fi
General Specification
Dimension (W×D×H): 720 × 160 × 916 mm
Dimension (W×D×H) incl. package: 28.3 × 6.3 × 36.1 inch
Weight: 130 kg (286.6 lbs)
Installation: Floor stand or wall mounted
Operating temperature [3]:
Charge: 0 to 50°C (32 to 122°F)
Discharge: -15 to 55°C (5 to 122°F)
Environmental humidity: < 95%RH (No condensation) Ingress protection rating: IP65 Cycle life [4]: 6000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL Scalability: Max 15 batteries in parallel Application: On Grid / Off Grid – Backup / Off Grid Compatible inverters: Refer to compatible inverter list (Compatible with major PCS brands) Standard Compliance Compliance: UN38.3 / IEC62619 / IEC61000 (More available upon request) Ordering and Deliverable Part Part: MANA 16.0 Battery Included: MANA 16.0 Parallel cable, MANA 16.0 PCS cable
