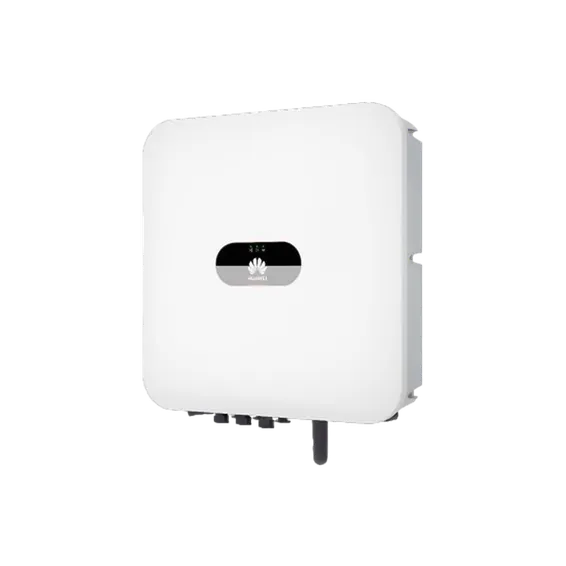

Huawei 6KW 1PH Fusionsolar Smart Residential Inverter

Output (On Grid) Rated Output Power: 6000W Max. Apparent Power: 6600VA Rated Output Voltage: 230VAC / 50Hz Max. Output Current: 27.3A Output (Off Grid) Backup Box (Optional): Backup Box – B0 Maximum Apparent Power: 5000VA Rated Output Voltage: 230VAC / 50Hz Maximum Output Current: 22.7A PV Input Max. PV Power: 9000Wp Max. Input Voltage (Voc): 600V Start-Up Voltage: 100V MPPT Operating Voltage Range: 90V – 560V Rated Input Voltage: 360V Max. Input Current Per MPPT: 12.5A Max. Short-Circuit Current (Isc): 18A MPPT Trackers/Max. Input Per Tracker: 2 ? 1 Optimizer Compatibility: DC MBUS compatible optimizer (SUN2000-450W-P,SUN2000-600W-P) Input (DC Battery) Compatible Battery: LUNA2000 ESS Battery 5kWh – 30kWh Operating Voltage Range: 350 – 560VDC Max Operating Current: 15A Max Charge Power: 5000W Max Discharge Power: 5000W General Data Max. Efficiency: 98,40% Display: RS485; Built WLAN; Fast Ethernet via SDONGLEA-05(optional); 4G/3G/2G via SDONGLEA-03-EU(optional)

Requires installation by a Huawei preferred installer or a qualified electrician with a Wire Man’s licence, who must supply a Certificate of Compliance after installation. Failure to provide supporting documentation on a warranty claim may void the warranty.
