Volt Power

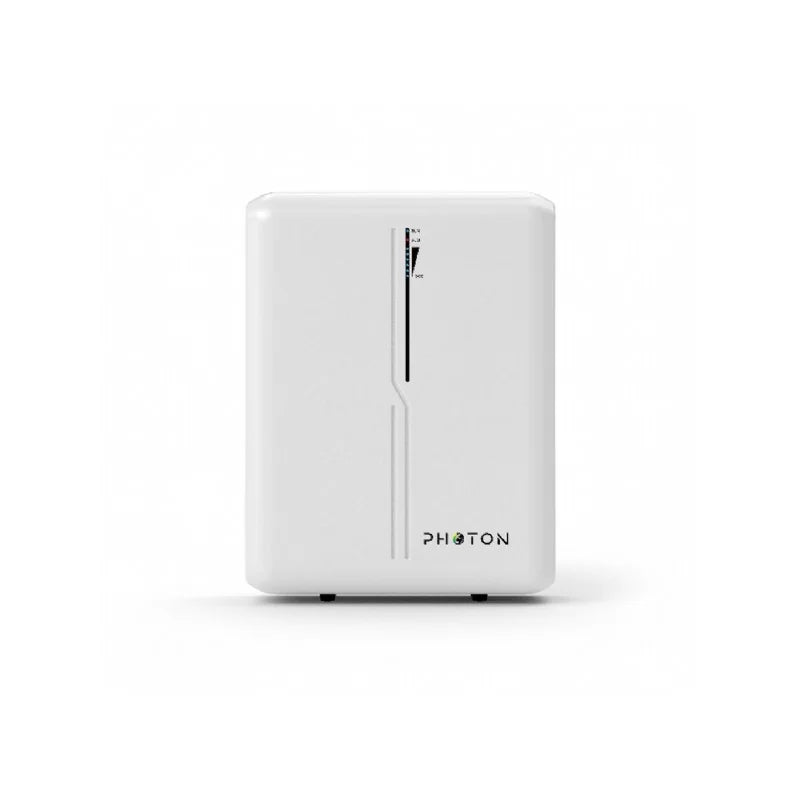

Photon 5.12kWh Battery 51.2V Wall Mount (300A Busbar)
Photon 5.12kWh Battery 51.2V Wall Mount (300A Busbar)
Regular price
R 19,568.00
Regular price
Sale price
R 19,568.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
PHOTON BATTERY
- CELL TYPE: Lithium Ion Phosphate LifePO+
- CAPACITY: 5120Wh
- NOMINAL VOLTAGE: 51.2 Vdc
- NOMINAL CHARGE/DISCHARGE CURRENT: 50A
- MAX CHARGE/DISCHARGE CURRENT: 100A
- SHORT CIRCUIT CURRENT: 350A
- DIMENSIONS: 460 x 161 x 614mm
- WALL OR FLOOR MOUNTED
- MAX 15 UNITS IN PARALLEL
- WEIGHT: 47kg
ADDITIONAL FEATURES
The Photon has built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that, BMS can balance cells charging to extend cycle life. BMS has protection functions including over-discharge, over-charge, over-current and high / low temperature; the system can automatically manage the charge state, discharge state, and balance state.
Multiple PTN-BAT-05K-WM-LFP can be connected in parallel to expand capacity and power, and 15 PTN-BAT-05K-WM-LFP can be connected in parallel at most.
storage.
Distributor Warranty Details
Photon offers a 10-year warranty on this product
