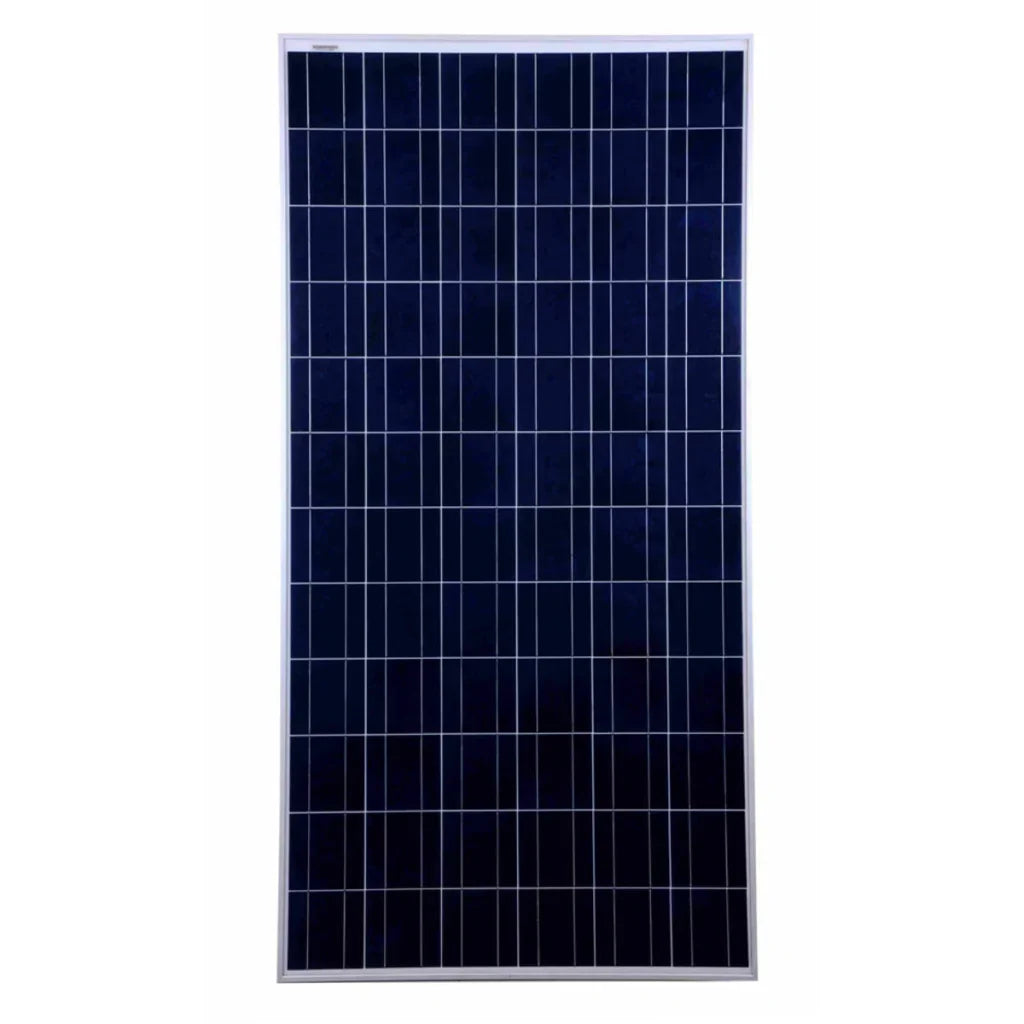

Renewsys Deserv 340W Solar Panel

The ideal PV Module for all applications that use the highest quality of PV Cells, in-house Encapsulants, and Backsheets.

Key Features

Made in India.
Positive power tolerance.
Highly reliable low-iron tempered glass.
Weather proof.
Wind speed – 2400Pa.
Snow load – 5400Pa.
IP 67 junction box.
PID resistant.
Quality & Safety

IEC 61215, IEC 61730, IEC 61701 compliant.
UL 1703 compliant.
ISO: 9001-2008 Certified Manufacturing Facility.
Warranty

Limited Power Output Warranty – 25 Years.
Product Warranty – 10 Years.
Electrical Characteristics

Peak Power, Pmax (Wp) – 340W.
Open circuit voltage, Voc (V) – 46.30V.
Short Circuit current, lsc (A) – 9.54V.
Voltage at Maximum power, Vmp (V) – 38.14V
Current at Maximum power, Imp (A) – 8.92A.
Module Efficiency (%) – 17.59%.
Mechanical Parameters

Module dimension – 1958mm x 987mm x 40mm.
Weight: 21.5 Kg.
No. of Cells – 72.
Solar cell Type – Poly crystalline cells.
Front Cover – 3.2mm Thick Low iron tempered glass.
Frame Material – Silver Anodized Aluminium Alloy.
Junction Box – 4 Rail IP67.
PV Connectors: MC4 Compatible
Cable: 4mm2
