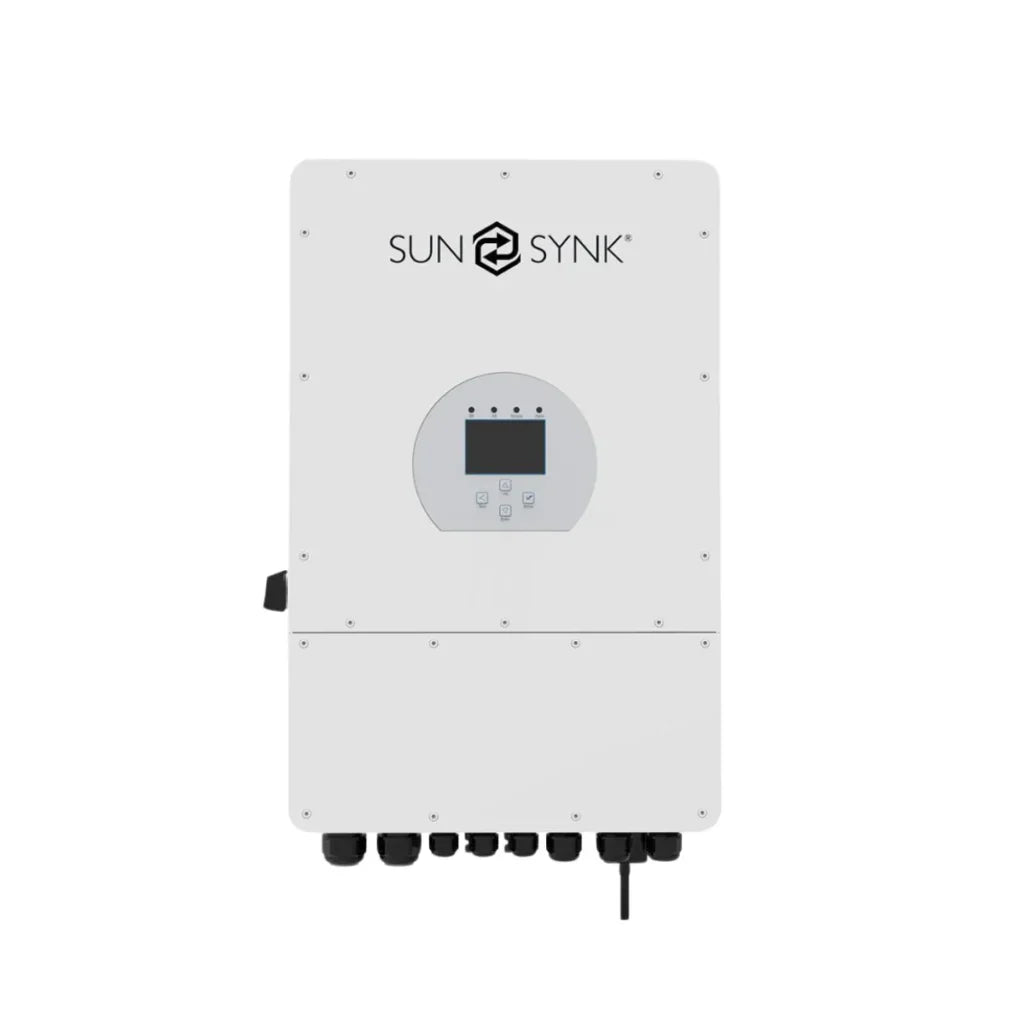

Sunsynk 12kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Sunsynk 12kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Regular price
R 28,999.00
Regular price
Sale price
R 28,999.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- SUNSYNK 12kW Hybrid Inverter (1 Phase) – SUNSYNK-12K-SG02LP1
- Model SUNSYNK-12K-SG02LP1
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- Grid Type: Split Phase; 2/3 Phase; Single Phase
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge/Discharge Current: 220A
- Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
- Maximum DC Input Power: 13000W
- MPPT Voltage Range: 150-425V
- 3 x MPPT
- Start-up Voltage: 125V
- Rated AC Output Active Power: 10000W
- Maximum AC Output Active Power: 11000W
- AC Output Rated Current: 45.5A/43.5A
- Backup UPS: 6ms Auto switchover time.
- Maximum Efficiency: 97.60%
- Euro Efficiency: 97.00%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Smart Cooling
- Operation Temperature: -45°C to 60°C, >45°C Derating
- Installation Type: Wall Mounted.
- Weight: 32Kg
- Dimensions (W x H x D): 420 x 670 x 233 mm
