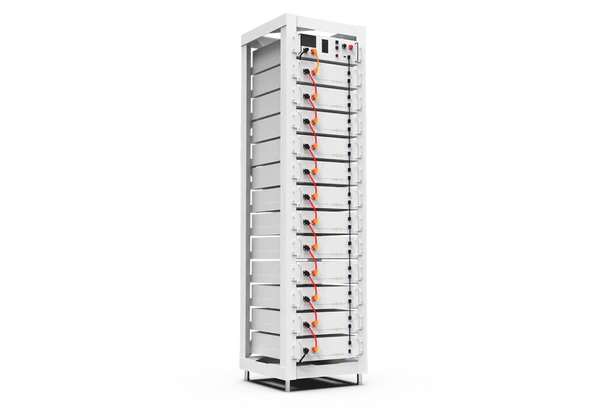

Sunsynk Battery 61.44kWh High Voltage Series

Sunsynk Battery 61.44kWh High Voltage Series

LITHIUM-ION STORAGE SYSTEM – HIGH VOLTAGE SERIES

Technical Data

• Battery System Power (kWh) – 61.44
• Charge/Discharge Rate (Max) – 1C
• Max Charge / Discharge Current (A) – 100
• Module Capacity (Ah) – 100
• Operating Voltage (V) – 538~691
• Operating Temperature Range – Charge: 0~55 ºC / Discharge: -20~55 ºC
• Battery Cell Chemistry – 61.44
• Dimension (W×D×H mm) – 13th level: 589×590×2240
• Total Weight (12 Battery Modules, 1 Rack) (kg) – 628
• Weight of Each Battery Module / Battery Rack (kg) – 44 – 85
• Operating Altitude – ≤2000m
• Relative Humidity Range – 5%~85% (RH)
• Warranty Period – 10 years
• Enclosure IP Rating – IP20
• Certifications – EN/IEC 61000-6, IEC62619, UN38.3
