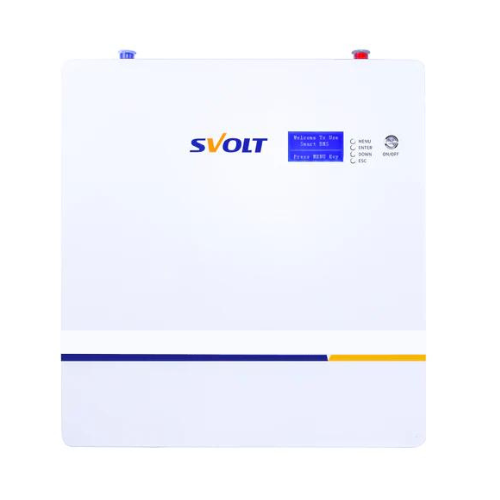

SVolt 5.4kWh 106AH Lithium Ion Battery – Wall Mount

The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications.

Specifications

• Energy: 5.43kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity : 106Ah
• Weight (Approx.): 44KGS
• Terminal Type: M6
• Terminal Torque: 8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance:<25mO
• Efficiency – round trip:97%
• Self Discharge per Month:<3%
• Max parallel connectors: 16Pcs
• Series connections: Not Allowed
• Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20 C to 65
• Storage Temperature :0C to 50 C
• LCD Screen: Yes
• Voltage Window: Optional
• Recommend Charge Voltage: 56.0V
• Max Charge Voltage: 58.4V
• Recommend Charge current: 50Amp
• Max Discharging Voltage: 43.2V
• Max Continuous Discharge Current :100A
• Peak Discharge Current: 150A
• C-Rating: 1C

Package Contents:

• 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet cable
• 1 x Manual
