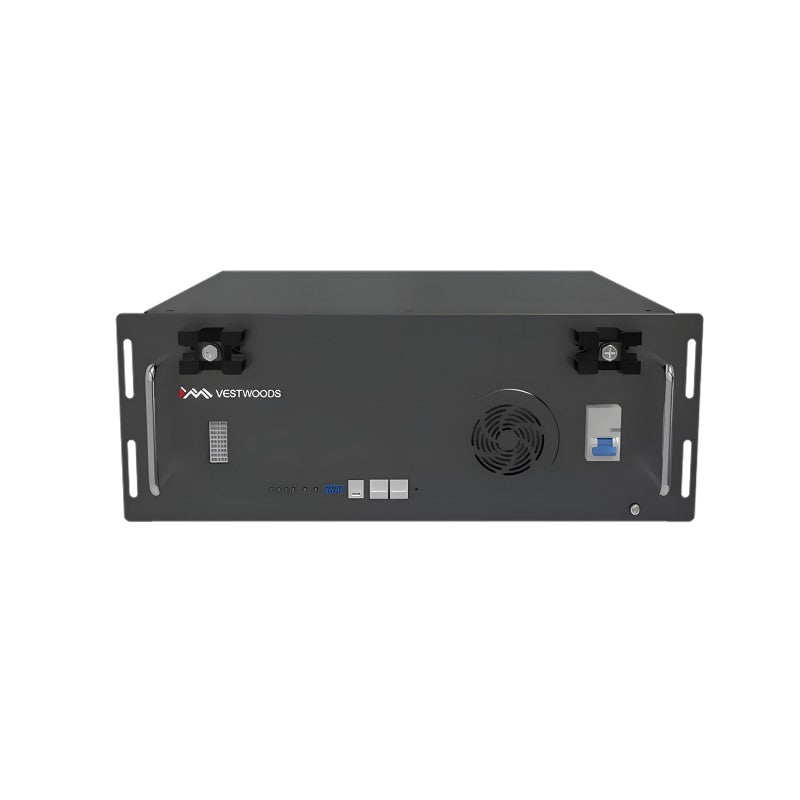

Vestwoods Lithium-ion Battery VT48200 – 200AMP / 9.6KWh / 3 Year Warranty

Features

– Easy Installation: 19-inch standardized battery module with a high energy density design that is suitable for various application scenarios.
– Excellent Temperature Tolerance: The VT battery series supports a working temperature range from -10°C to 60°C, with a maximum 1C overcurrent capability to ensure outdoor operation.
– Certification Approved: The design is approved for reliability and safety, meeting various international safety and performance certifications including UL, IEC, and UN.
– Longer Product Life: The battery uses LFP material with the longest cycle life of 15 years.
– Maintenance-Free: The battery is a sealed unit that avoids frequent water refills.
– Additional Features: Multiple function options such as modbus/CAN/SNMP V2/SNMP V3/dry contact/anti-theft/display.

Specifications

– Model: VT48200

– DOD: 80%
– Nominal capacity: 200Ah@0.2C, 25℃
– Nominal voltage: 48V
– Rated charging voltage: 54V
– Max. Charge/Discharge Current: 100Ah@25℃
– Charge Parameters: Max 56V, Float 54V, Cut-Off 40.5V
– Operating temperature range: Charging: 0°C – 60°C, Discharging: -20°C – 60°C
– Weight: Approx. 78kg
– Dimensions (WHD): 444222490mm
– IP rating: IP20
– Communication: RS485/CAN
– Allowable humidity range: ≤95% RH
– Installation method: Suitable for standard 19″ and 23″ cabinets
– Optional features: CAN/LCD/Gyroscope/GPS/SNMP
