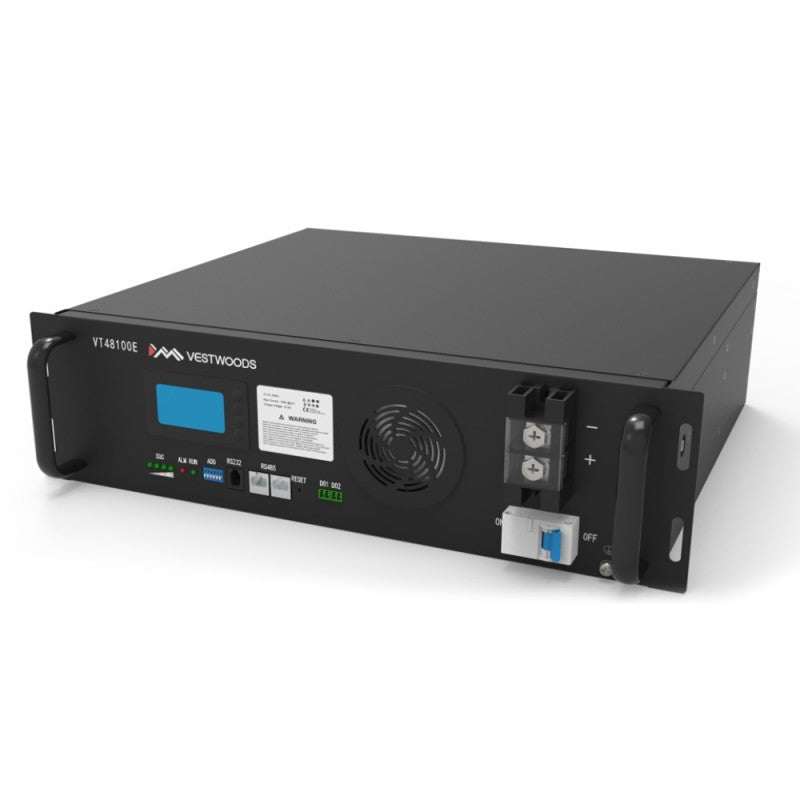

Vestwoods Lithium-ion LifePO4 Battery VT48100E-A2 5.12kWh – 51.2V – 16 Cell- 100Ah 3U LCD No SNMP / up to 10 Year Warranty

Intelligent lithium battery, integrated with self-designed BMS, developed and produced by Vestwoods can be widely used in various telecom and energy storage systems such as indoor distribution stations, integrated base stations, edge stations, micro-cell stations, FTTX equipment, distributed power supply, standby and deep cycle ESS

Features

High-quality LFP cells from a leading company
Super energy density: 123 Wh/kg
High rate charge/discharge current @1 C
Long design life up to 15+ years@ 25 °C
High Efficiency between charge and discharge
SOC/SOH dynamic updating
CAN/Modbus/SNMP V2
Multiple protection methods based on patented BMS

Specifications

Nominal Capacity: 100Ah
Nominal Voltage: 51.2 VDC
Rated Charge Voltage: 56.4 V
Max. Continuous Charge Current: 100 A
Discharge Cut-off Voltage: 43.2 V
Max. Continuous Discharge Current: 100 A
Temperature Range of Charge: 0°C ~ 60°C
Temperature Range of Discharge: -20°C ~ 60°C
Allowed Humidity Range: S95% RH
Weight: Approx. 39 kg
IP Protection Level: IP 20
Dimensions (W*D*H): 440*400*130±2mm
